Welding Carbon Steel

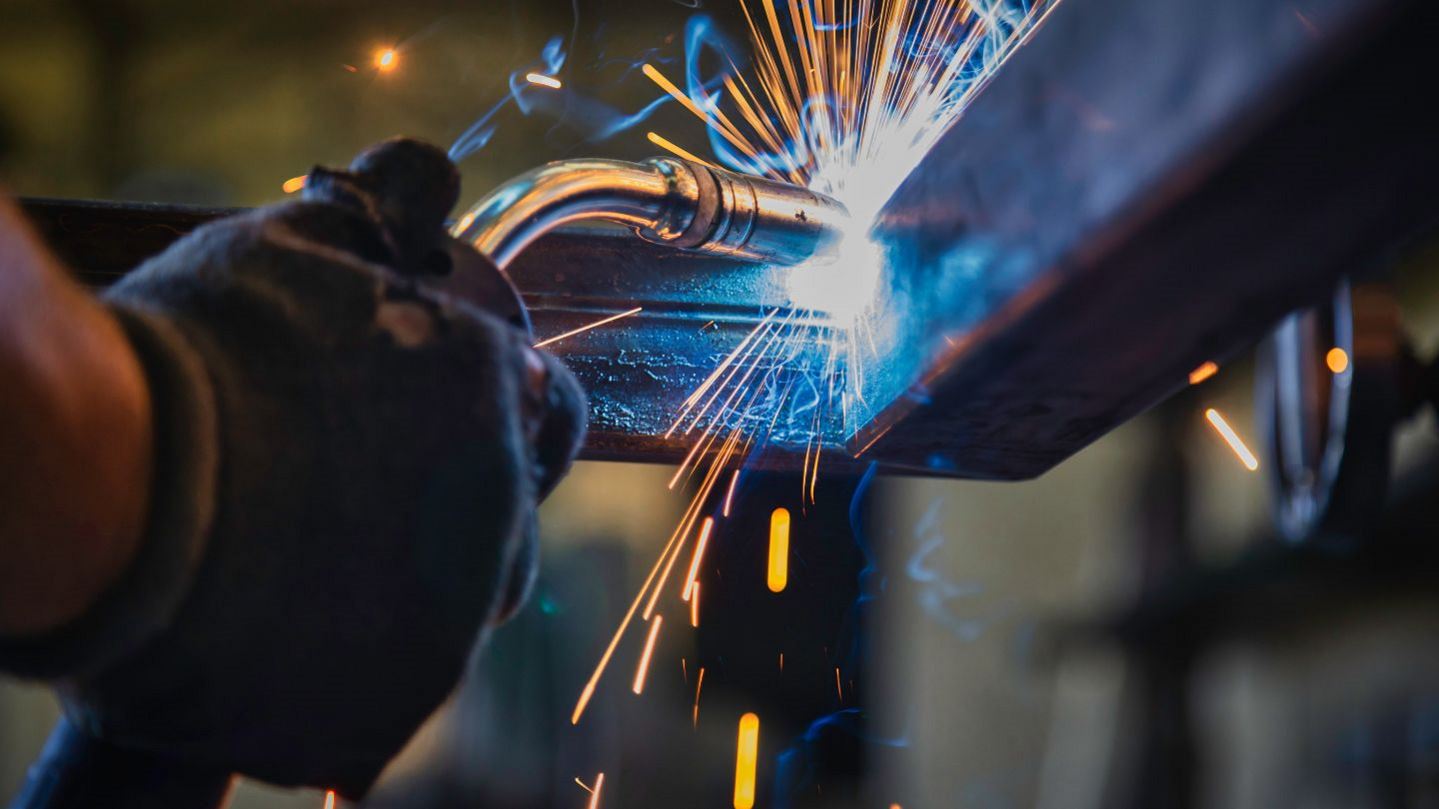

Spatter is made up of many thousands of droplets of molten filler metal that escape from the weld pool and are scattered around the work area during welding. These small, round balls of molten metal can fall on the welder, workpiece, the floor and surrounds. Sometimes they stick and are difficult to remove, sometimes they cool and form tiny balls of metal.

What causes Spatter?

Causes of spatter include:

• Poor base material surface conditions; joint faces and the weld area need to be clean and free from contamination such as oil, paint, scale and rust.
• Use of welding equipment in poor working order.
• Sub-optimal shielding gas selection; for instance, when MAG welding carbon steel, argon/carbon dioxide mixtures generate more spatter than argon/carbon dioxide/oxygen gas mixtures such as one of the Ferromaxx® gases from Air Products.

How to reduce spatter when welding?

Spatter can be removed either using hand tools (such as a grinder or chisel) or via a chemical process. In some instances, anti-spatter wipes can be applied to the workpiece, prior to welding, to ease the removal of spatter. However, any method to remove spatter will require some manual input. From a visual perspective, it is well understood why it is undesirable to have spatter on the workpiece, as it negatively impacts the finish of the product. Due to the uneven surface and poor adhesion of the spatter, paint finishes will have imperfections and offer poor protection. This, in turn, can shorten the life cycle of the final product. However, there are several other key reasons to eliminate spatter that are sometimes overlooked. These are all cost-related:

• Spatter is a waste of wire. On the face of it a reduction in spatter on a weld may seem insignificant and not worth the effort to resolve. However, filler wire is expensive, and the melting of spatter uses valuable electricity, up to 20% of filler wire can be wasted in spatter if not controlled properly. In addition, spatter can stick to gas nozzles and contact tips blocking the flow of gas and causing porosity.
• Spatter increases material costs. Anti-spatter, grinding wheels, chemicals, power – the more spatter there is to remove, the more these costs increase.
• Spatter incurs labour costs to remove. This is lost production time. Welders are skilled labour. Any time spent removing spatter is time that could have been spent in a more productive way.

There is a compelling case to minimise spatter. Air Products can work with you to achieve this goal. All our Maxx® weld process gases have been designed to minimise spatter, saving you time and money.

Why is Shielding Gas Used in Welding?

Shielding gas acts as a blanket that sits over the weld pool protecting it from atmospheric contamination. If moisture, nitrogen or oxygen enter the weld pool then this weakens the weld quality leading to defects and potentially rejects. Welding gas is inert or semi-inert so that it does not interact with the weld process. The most common element in welding gas is Argon. Many modern welding gases are mixtures; some may contain reactive elements, such as hydrogen, however these are smaller constituents in the mixture.

What is Weld Porosity?

One example of a welding defect caused by contamination is porosity. Porosity is caused by absorption of gas in the weld pool, that is released as solidification takes place to become trapped in the weld. Gases like hydrogen, oxygen and nitrogen have a larger solubility in molten metal than in the solid phase. Therefore, as a weld cools, gases are expelled from the solidifying melt and can become trapped as pores if solidification occurs before they reach the surface.
